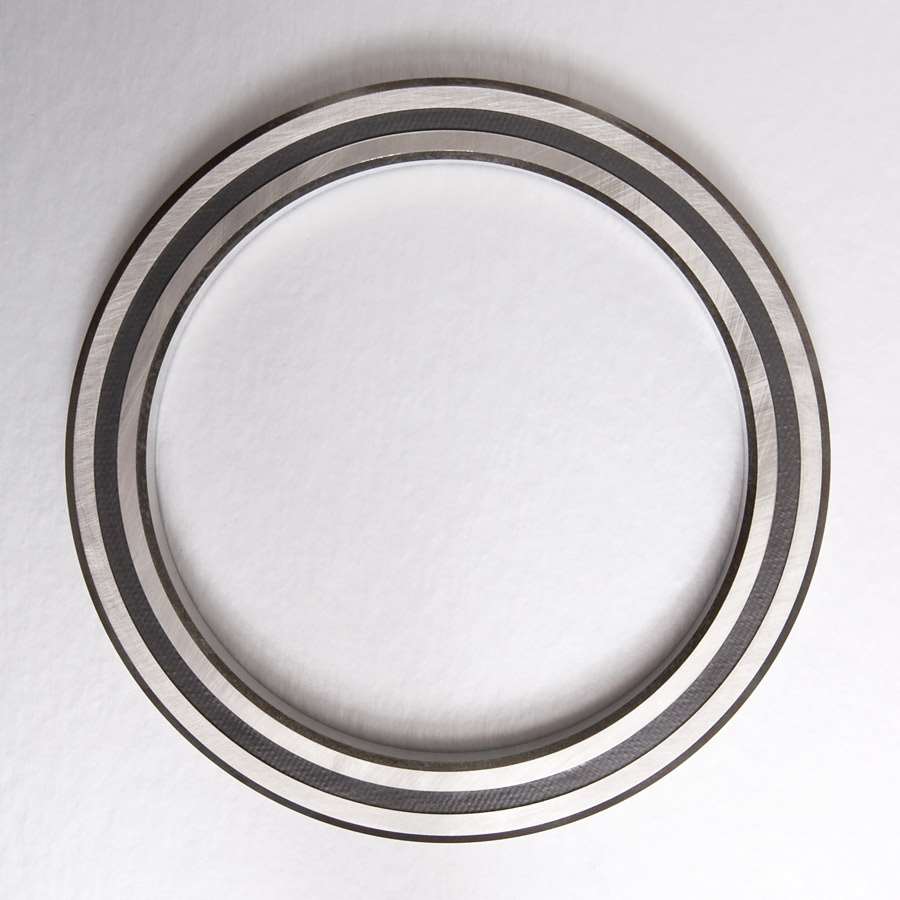

RJB Sealed Series Radial C-Type

5/16” x 5/16” Cross Section

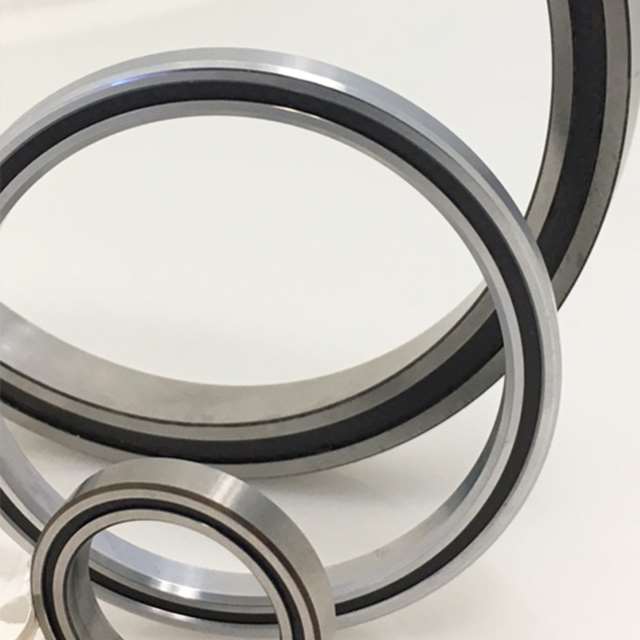

The sealed RJB series C-Type Radial Ball Bearing is a single row deep groove ball bearing.  This bearing can withstand high radial loads for demanding applications. The sealed RJB series C-Type can also accept slight moderate loads, as well as axial (thrust), reversing, and moment loads.

LOAD TYPE
Radial Axial (Thrust) Moment Reversing Combined
Excellent Good Good-Light to Moderate Good-Light to Moderate Good

Typically the sealed RJB series C-Type Radial Ball Bearing is provided with a brass cage separator, PTFE seals, MIL-G-81322 lubricant and an ABEC 1 rating class. Options abound with variations available in:

  • Material type for rings, seals and rolling elements
  • Lubricant and fill rate
  • Bore size
  • Precision class
  • Diametral clearance (Internal Fit)

Request a Quote

Applications

  • Antenna mounts
  • Bottling equipment
  • Blow out protectors
  • Camera mounts
  • Converting equipment
  • X-ray equipment
  • Food processing equipment
  • Gear boxes
  • Indexing tables
  • Instrument mounts
  • Labeling machines
  • Machine tools/ Lathe accessories
  • Medical equipment
  • Missile launchers
  • Oil well equipment

Specifications


Part Number Bore Outside Diameter Type
RJB020CP0 2.0000 2.6250 Radial Contact Sealed

Bearing information

Learn more about RJB020CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB020CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB020CP0
Bore Diameter [b] 2.0000
Outside Diameter [D] 2.6250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 2.234
Land Diameter Outer Ring [Lo] 2.391
Housing Fillet [f1] 0.400
Ball Diameter 5/32
Weight (lbs.) 0.15
Radial Static Load (lbs.) 930
Radial Dynamic Load (lbs.) 577
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 3,130
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB025CP0 2.5000 3.1250 Radial Contact Sealed

Bearing information

Learn more about RJB025CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB025CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB025CP0
Bore Diameter [b] 2.5000
Outside Diameter [D] 3.1250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 2.734
Land Diameter Outer Ring [Lo] 2.891
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.19
Radial Static Load (lbs.) 1,140
Radial Dynamic Load (lbs.) 644
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 2,580
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB030CP0 3.0000 3.6250 Radial Contact Sealed

Bearing information

Learn more about RJB030CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB030CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB030CP0
Bore Diameter [b] 3.0000
Outside Diameter [D] 3.6250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 3.234
Land Diameter Outer Ring [Lo] 3.391
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.22
Radial Static Load (lbs.) 1,340
Radial Dynamic Load (lbs.) 707
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 2,190
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB035CP0 3.5000 4.1250 Radial Contact Sealed

Bearing information

Learn more about RJB035CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB035CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB035CP0
Bore Diameter [b] 3.5000
Outside Diameter [D] 4.1250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 3.734
Land Diameter Outer Ring [Lo] 3.891
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.27
Radial Static Load (lbs.) 1,540
Radial Dynamic Load (lbs.) 767
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 1,900
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB040CP0 4.0000 4.6250 Radial Contact Sealed

Bearing information

Learn more about RJB040CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB040CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB040CP0
Bore Diameter [b] 4.0000
Outside Diameter [D] 4.6250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 4.234
Land Diameter Outer Ring [Lo] 4.391
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.3
Radial Static Load (lbs.) 1,750
Radial Dynamic Load (lbs.) 825
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 1,630
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB042CP0 4.2500 4.8750 Radial Contact Sealed

Bearing information

Learn more about RJB042CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB042CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB042CP0
Bore Diameter [b] 4.2500
Outside Diameter [D] 4.8750
Width [W] 0.3125
Land Diameter Inner Ring [Li] 4.484
Land Diameter Outer Ring [Lo] 4.641
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.31
Radial Static Load (lbs.) 1,830
Radial Dynamic Load (lbs.) 846
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 4,250
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB045CP0 4.5000 5.1250 Radial Contact Sealed

Bearing information

Learn more about RJB045CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB045CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB045CP0
Bore Diameter [b] 4.5000
Outside Diameter [D] 5.1250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 4.734
Land Diameter Outer Ring [Lo] 4.891
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.33
Radial Static Load (lbs.) 1,950
Radial Dynamic Load (lbs.) 880
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 1,600
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB047CP0 4.7500 5.3750 Radial Contact Sealed

Bearing information

Learn more about RJB047CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB047CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB047CP0
Bore Diameter [b] 4.7500
Outside Diameter [D] 5.3750
Width [W] 0.3125
Land Diameter Inner Ring [Li] 4.984
Land Diameter Outer Ring [Lo] 5.141
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.34
Radial Static Load (lbs.) 2,030
Radial Dynamic Load (lbs.) 901
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 1,500
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB050CP0 5.0000 5.6250 Radial Contact Sealed

Bearing information

Learn more about RJB050CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB050CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB050CP0
Bore Diameter [b] 5.0000
Outside Diameter [D] 5.6250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 5.234
Land Diameter Outer Ring [Lo] 5.391
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.37
Radial Static Load (lbs.) 2,150
Radial Dynamic Load (lbs.) 933
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 1,360
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB055CP0 5.5000 6.1250 Radial Contact Sealed

Bearing information

Learn more about RJB055CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB055CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB055CP0
Bore Diameter [b] 5.5000
Outside Diameter [D] 6.1250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 5.734
Land Diameter Outer Ring [Lo] 5.891
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.40
Radial Static Load (lbs.) 2,360
Radial Dynamic Load (lbs.) 984
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 1,240
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB060CP0 6.0000 6.6250 Radial Contact Sealed

Bearing information

Learn more about RJB060CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB060CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB060CP0
Bore Diameter [b] 6.0000
Outside Diameter [D] 6.6250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 6.234
Land Diameter Outer Ring [Lo] 6.391
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.44
Radial Static Load (lbs.) 2,560
Radial Dynamic Load (lbs.) 1,034
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 1,150
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
RJB065CP0 6.5000 7.1250 Radial Contact Sealed

Bearing information

Learn more about RJB065CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJB065CP0 Specifications
Product Type Radial Contact Sealed
Part Number RJB065CP0
Bore Diameter [b] 6.5000
Outside Diameter [D] 7.1250
Width [W] 0.3125
Land Diameter Inner Ring [Li] 6.734
Land Diameter Outer Ring [Lo] 6.891
Housing Fillet [f1] 0.040
Ball Diameter 5/32
Weight (lbs.) 0.47
Radial Static Load (lbs.) 2,760
Radial Dynamic Load (lbs.) 1,082
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 1,060
Speed (RPM) Axial N/A
Material 52100 Bearing Steel
