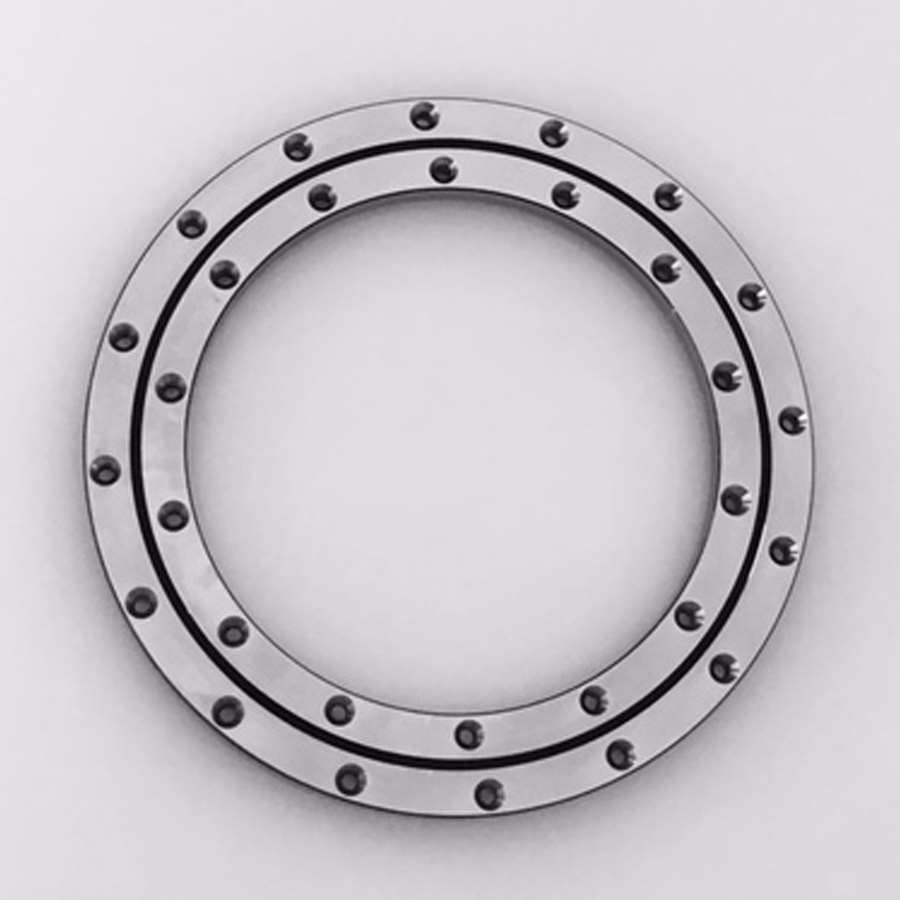

Thin Turntable RT Type

The sealed RT Turntable X-Type 4-Point Contact Bearing is a single row ball bearing.  This bearing can withstand moment loading. The RT Turntable X-Type bearings have been created using a gothic archway. The gothic archway allows for moment and reversing axial loads to be accepted. RT Turntable X-Type bearings are not an ideal solution for radial loads or combined radial and thrust loads.

LOAD TYPE
Radial Axial (Thrust) Moment Reversing Combined
Poor Good Excellent Excellent Poor

Typically the RT Turntable X-Type 4-Point Contact Bearing is provided with AISI-440C rings, a brass cage separator, PTFE seals, MIL-G-81322 lubricant and an ABEC 1 rating class. Options abound with variations available in:

  • Lubricant and fill rate
  • Cage material and ball material
  • Bore size
  • No gearing, external gear or internal gear design
  • Mounting holes
  • Seal material
  • Precision class
  • Diametral clearance (Internal Fit)

Request a Quote

Applications

  • Antenna mounts
  • Bottling equipment
  • Blow out protectors
  • Camera mounts
  • Converting equipment
  • X-ray equipment
  • Food processing equipment
  • Gear boxes
  • Indexing tables
  • Instrument mounts
  • Labeling machines
  • Machine tools/ Lathe accessories
  • Medical equipment
  • Missile launchers
  • Oil well equipment

Specifications


Part Number Bore Outside Diameter Type
RT01-00225PAA 1.500 3.000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00225PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00225PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00225PAA
Bore Diameter [b] 1.500
Outside Diameter [D] 3.000
Width [W] 0.25
Land Diameter Inner Ring [Li] 2.148
Land Diameter Outer Ring [Lo] 2.356
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.35
Inner Bolt Circle 1.813
Number of Holes (Inner Bolt Circle) 6
Outer Bolt Circle 2.688
Number of Holes (Outer Bolt Circle) 8
Radial Static Load (lbs.) 680
Radial Dynamic Load (lbs.) 520
Thrust Static Load (lbs.) 1,710
Thrust Dynamic Load (lbs.) 790
Moment Static Load (lbs. -in.) 770
Moment Dynamic Load (lbs. -in.) 440
Material 440C Bearing Steel
RT01-00275PAA 2.0000 3.5000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00275PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00275PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00275PAA
Bore Diameter [b] 2.0000
Outside Diameter [D] 3.5000
Width [W] 0.2500
Land Diameter Inner Ring [Li] 2.648
Land Diameter Outer Ring [Lo] 2.856
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.43
Inner Bolt Circle 2.313
Number of Holes (Inner Bolt Circle) 8
Outer Bolt Circle 3.188
Number of Holes (Outer Bolt Circle) 10
Radial Static Load (lbs.) 830
Radial Dynamic Load (lbs.) 580
Thrust Static Load (lbs.) 2,090
Thrust Dynamic Load (lbs.) 910
Moment Static Load (lbs. -in.) 1,150
Moment Dynamic Load (lbs. -in.) 600
Material 440C Bearing Steel
RT01-00325PAA 2.5000 4.0000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00325PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00325PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00325PAA
Bore Diameter [b] 2.5000
Outside Diameter [D] 4.0000
Width [W] 0.2500
Land Diameter Inner Ring [Li] 3.148
Land Diameter Outer Ring [Lo] 3.356
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.50
Radial Static Load (lbs.) 990
Radial Dynamic Load (lbs.) 640
Thrust Static Load (lbs.) 2,470
Thrust Dynamic Load (lbs.) 1,010
Moment Static Load (lbs. -in.) 1,600
Moment Dynamic Load (lbs. -in.) 780
Material 440C Bearing Steel
RT01-00375PAA 3.0000 4.5000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00375PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00375PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00375PAA
Bore Diameter [b] 3.0000
Outside Diameter [D] 4.5000
Width [W] 0.2500
Land Diameter Inner Ring [Li] 3.648
Land Diameter Outer Ring [Lo] 3.856
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.59
Inner Bolt Circle 3.313
Number of Holes (Inner Bolt Circle) 10
Outer Bolt Circle 4.188
Number of Holes (Outer Bolt Circle) 14
Radial Static Load (lbs.) 1,140
Radial Dynamic Load (lbs.) 700
Thrust Static Load (lbs.) 2,850
Thrust Dynamic Load (lbs.) 1,110
Moment Static Load (lbs. -in.) 2,130
Moment Dynamic Load (lbs. -in.) 980
Material 440C Bearing Steel
RT01-00425PAA 3.5000 5.0000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00425PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00425PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00425PAA
Bore Diameter [b] 3.5000
Outside Diameter [D] 5.0000
Width [W] 0.2500
Land Diameter Inner Ring [Li] 4.148
Land Diameter Outer Ring [Lo] 4.356
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.67
Inner Bolt Circle 3.813
Number of Holes (Inner Bolt Circle) 12
Outer Bolt Circle 4.688
Number of Holes (Outer Bolt Circle) 15
Radial Static Load (lbs.) 1,290
Radial Dynamic Load (lbs.) 750
Thrust Static Load (lbs.) 3,220
Thrust Dynamic Load (lbs.) 1,210
Moment Static Load (lbs. -in.) 2,740
Moment Dynamic Load (lbs. -in.) 1,200
Material 440C Bearing Steel
RT01-00450PAA 3.7500 5.2500 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00450PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00450PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00450PAA
Bore Diameter [b] 3.7500
Outside Diameter [D] 5.2500
Width [W] 0.2500
Land Diameter Inner Ring [Li] 4.398
Land Diameter Outer Ring [Lo] 4.606
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.70
Inner Bolt Circle 4.063
Number of Holes (Inner Bolt Circle) 12
Outer Bolt Circle 4.938
Number of Holes (Outer Bolt Circle) 16
Radial Static Load (lbs.) 1,370
Radial Dynamic Load (lbs.) 780
Thrust Static Load (lbs.) 3,410
Thrust Dynamic Load (lbs.) 1,260
Moment Static Load (lbs. -in.) 3,070
Moment Dynamic Load (lbs. -in.) 1,320
Material 440C Bearing Steel
RT01-00475PAA 4.0000 5.5000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00475PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00475PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00475PAA
Bore Diameter [b] 4.0000
Outside Diameter [D] 5.5000
Width [W] 0.2500
Land Diameter Inner Ring [Li] 4.648
Land Diameter Outer Ring [Lo] 4.856
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.74
Inner Bolt Circle 4.31
Number of Holes (Inner Bolt Circle) 14
Outer Bolt Circle 5.188
Number of Holes (Outer Bolt Circle) 16
Radial Static Load (lbs.) 1,440
Radial Dynamic Load (lbs.) 810
Thrust Static Load (lbs.) 3,600
Thrust Dynamic Load (lbs.) 1,310
Moment Static Load (lbs. -in.) 3,420
Moment Dynamic Load (lbs. -in.) 1,440
Material 440C Bearing Steel
RT01-00500PAA 4.2500 5.7500 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00500PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00500PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00500PAA
Bore Diameter [b] 4.2500
Outside Diameter [D] 5.7500
Width [W] 0.2500
Land Diameter Inner Ring [Li] 4.898
Land Diameter Outer Ring [Lo] 5.106
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.78
Inner Bolt Circle 4.563
Number of Holes (Inner Bolt Circle) 14
Outer Bolt Circle 5.438
Number of Holes (Outer Bolt Circle) 18
Radial Static Load (lbs.) 1,520
Radial Dynamic Load (lbs.) 830
Thrust Static Load (lbs.) 3,790
Thrust Dynamic Load (lbs.) 1,350
Moment Static Load (lbs. -in.) 3,790
Moment Dynamic Load (lbs. -in.) 1,560
Material 440C Bearing Steel
RT01-00525PAA 4.5000 6.0000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00525PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00525PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00525PAA
Bore Diameter [b] 4.5000
Outside Diameter [D] 6.0000
Width [W] 0.2500
Land Diameter Inner Ring [Li] 5.148
Land Diameter Outer Ring [Lo] 5.356
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.82
Inner Bolt Circle 4.813
Number of Holes (Inner Bolt Circle) 15
Outer Bolt Circle 5.688
Number of Holes (Outer Bolt Circle) 18
Radial Static Load (lbs.) 1,590
Radial Dynamic Load (lbs.) 860
Thrust Static Load (lbs.) 3,980
Thrust Dynamic Load (lbs.) 1,400
Moment Static Load (lbs. -in.) 4,180
Moment Dynamic Load (lbs. -in.) 1,690
Material 440C Bearing Steel
RT01-00575PAA 5.0000 6.5000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00575PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00575PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00575PAA
Bore Diameter [b] 5.0000
Outside Diameter [D] 6.5000
Width [W] 0.2500
Land Diameter Inner Ring [Li] 5.648
Land Diameter Outer Ring [Lo] 5.856
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.89
Inner Bolt Circle 5.31
Number of Holes (Inner Bolt Circle) 16
Outer Bolt Circle 6.188
Number of Holes (Outer Bolt Circle) 20
Radial Static Load (lbs.) 1,750
Radial Dynamic Load (lbs.) 910
Thrust Static Load (lbs.) 4,360
Thrust Dynamic Load (lbs.) 1,480
Moment Static Load (lbs. -in.) 5,020
Moment Dynamic Load (lbs. -in.) 1,950
Material 440C Bearing Steel
RT01-00625PAA 5.500 7.000 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00625PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00625PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00625PAA
Bore Diameter [b] 5.500
Outside Diameter [D] 7.000
Width [W] 0.2500
Land Diameter Inner Ring [Li] 6.148
Land Diameter Outer Ring [Lo] 6.356
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 0.98
Inner Bolt Circle 5.813
Number of Holes (Inner Bolt Circle) 18
Outer Bolt Circle 6.688
Number of Holes (Outer Bolt Circle) 22
Radial Static Load (lbs.) 1,900
Radial Dynamic Load (lbs.) 950
Thrust Static Load (lbs.) 4,740
Thrust Dynamic Load (lbs.) 1,570
Moment Static Load (lbs. -in.) 5,930
Moment Dynamic Load (lbs. -in.) 2,230
Material 440C Bearing Steel
RT01-00675PAA 6.000 7.500 4 Point Contact Non-Geared

Bearing information

Learn more about RT01-00675PAA Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RT01-00675PAA Specifications Specifications
Product Type 4 Point Contact Non-Geared
Part Number RT01-00675PAA
Bore Diameter [b] 6.000
Outside Diameter [D] 7.500
Width [W] 0.2500
Land Diameter Inner Ring [Li] 6.648
Land Diameter Outer Ring [Lo] 6.856
Housing Fillet [f1] 0.015
Ball Diameter 1/8
Weight (lbs.) 1.05
Inner Bolt Circle 6.31
Number of Holes (Inner Bolt Circle) 20
Outer Bolt Circle 7.188
Number of Holes (Outer Bolt Circle) 22
Radial Static Load (lbs.) 2,050
Radial Dynamic Load (lbs.) 1,000
Thrust Static Load (lbs.) 5,120
Thrust Dynamic Load (lbs.) 1,650
Moment Static Load (lbs. -in.) 6,910
Moment Dynamic Load (lbs. -in.) 2,530
Material 440C Bearing Steel

SSB - Thin Section Bearings & Slim Section Bearings

Contact Us

Please contact us at 909-464-1551 for your unique application challenges. We look forward in working with you to help solve your next bearing project. You can also complete the following Application Data Sheet and email it back to us.
