RJG Inch Sealed Radial Type

1” x 1” Cross Section

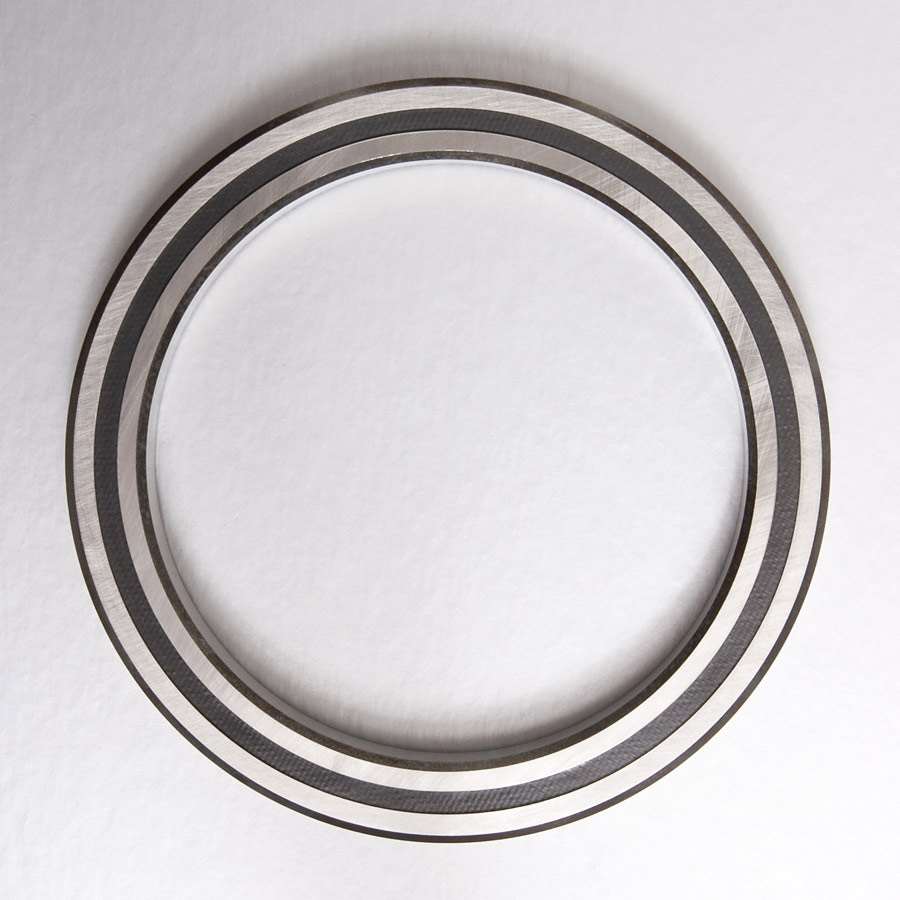

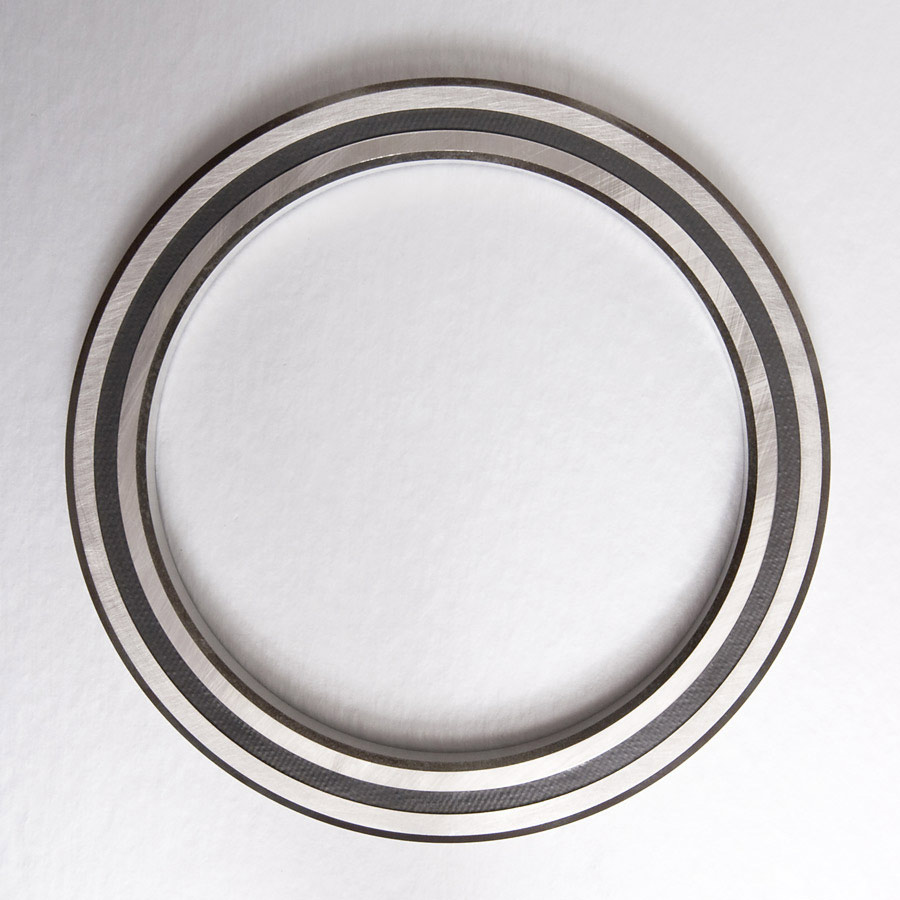

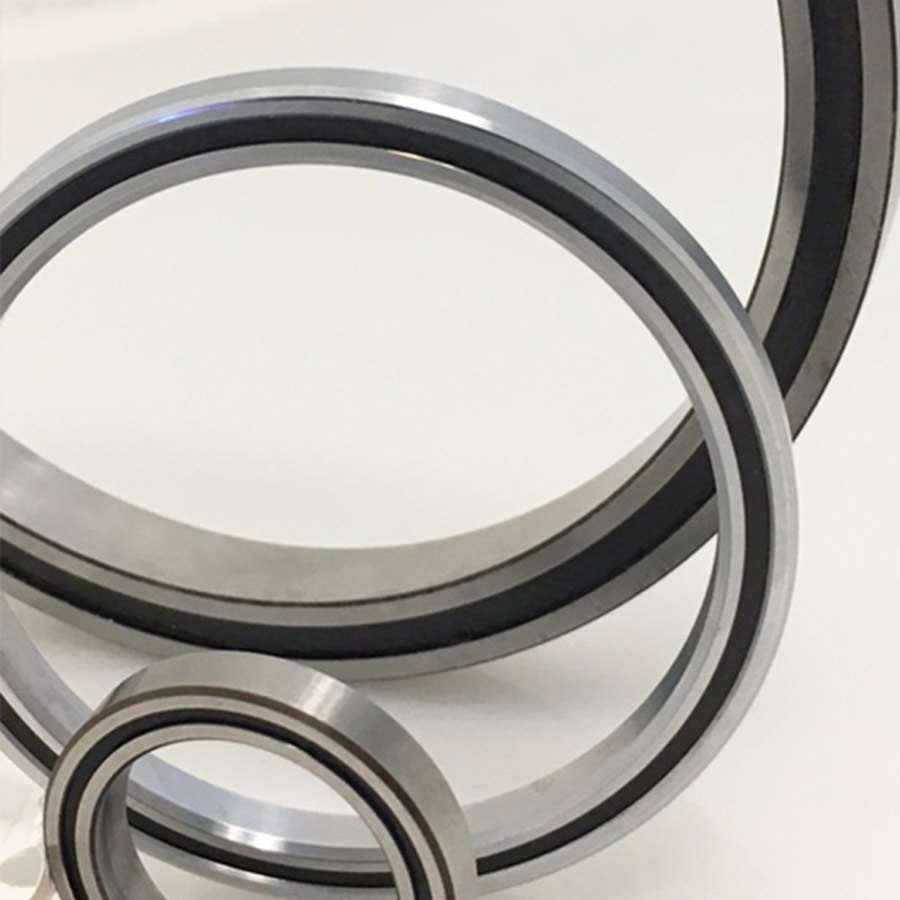

The sealed RJG series C-Type Radial Ball Bearing is a single row deep groove ball bearing.  This bearing can withstand high radial loads for demanding applications. The sealed RJG series C-Type can also accept slight moderate loads, as well as axial (thrust), reversing, and moment loads.

LOAD TYPE
Radial Axial (Thrust) Moment Reversing Combined
Excellent Good Good-Light to Moderate Good-Light to Moderate Good

Typically the sealed RJG series C-Type Radial Ball Bearing is provided with a brass cage separator, PTFE seals, MIL-G-81322 lubricant and an ABEC 1 rating class. Options abound with variations available in:

  • Material type for rings, seals and rolling elements
  • Lubricant and fill rate
  • Bore size
  • Precision class
  • Diametral clearance (Internal Fit)

Request a Quote

Applications

Specifications


Part Number Bore Outside Diameter Type
RJG070CP0 7.0000 9.0000 Radial Contact Sealed

Bearing information

Learn more about RJG070CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG070CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG070CP0
Bore Diameter [b] 7.0000
Outside Diameter [D] 9.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 7.750
Land Diameter Outer Ring [Lo] 8.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 5.8
Radial Static Load (lbs.) 13,130
Radial Dynamic Load (lbs.) 7,764
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 240
Material 52100 Bearing Steel
RJG075CP0 7.5000 9.5000 Radial Contact Sealed

Bearing information

Learn more about RJG075CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG075CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG075CP0
Bore Diameter [b] 7.5000
Outside Diameter [D] 9.5000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 8.250
Land Diameter Outer Ring [Lo] 8.750
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 6.1
Radial Static Load (lbs.) 13,680
Radial Dynamic Load (lbs.) 7,911
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 225
Speed (RPM) Axial 52100 Bearing Steel
RJG080CP0 8.0000 10.0000 Radial Contact Sealed

Bearing information

Learn more about RJG080CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG080CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG080CP0
Bore Diameter [b] 8.0000
Outside Diameter [D] 10.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 8.705
Land Diameter Outer Ring [Lo] 9.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 6.5
Radial Static Load (lbs.) 14,770
Radial Dynamic Load (lbs.) 8,265
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 210
Material 52100 Bearing Steel
RJG090CP0 9.0000 11.0000 Radial Contact Sealed

Bearing information

Learn more about RJG090CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG090CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG090CP0
Bore Diameter [b] 9.0000
Outside Diameter [D] 11.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 9.750
Land Diameter Outer Ring [Lo] 10.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 7.2
Radial Static Load (lbs.) 16,420
Radial Dynamic Load (lbs.) 8,743
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 190
Material 52100 Bearing Steel
RJG100CP0 10.0000 12.0000 Radial Contact Sealed

Bearing information

Learn more about RJG100CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG100CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG100CP0
Bore Diameter [b] 10.0000
Outside Diameter [D] 12.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 10.750
Land Diameter Outer Ring [Lo] 11.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 7.9
Radial Static Load (lbs.) 18,060
Radial Dynamic Load (lbs.) 9,204
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 175
Material 52100 Bearing Steel
RJG110CP0 11.0000 13.0000 Radial Contact Sealed

Bearing information

Learn more about RJG110CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG110CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG110CP0
Bore Diameter [b] 11.0000
Outside Diameter [D] 13.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 11.750
Land Diameter Outer Ring [Lo] 12.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 8.6
Radial Static Load (lbs.) 19,700
Radial Dynamic Load (lbs.) 9,648
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 160
Material 52100 Bearing Steel
RJG120CP0 12.0000 14.0000 Radial Contact Sealed

Bearing information

Learn more about RJG120CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG120CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG120CP0
Bore Diameter [b] 12.0000
Outside Diameter [D] 14.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 12.750
Land Diameter Outer Ring [Lo] 13.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 9.3
Radial Static Load (lbs.) 21,340
Radial Dynamic Load (lbs.) 10,074
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 140
Material 52100 Bearing Steel
RJG140CP0 14.0000 16.0000 Radial Contact Sealed

Bearing information

Learn more about RJG140CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG140CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG140CP0
Bore Diameter [b] 14.0000
Outside Diameter [D] 16.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 14.750
Land Diameter Outer Ring [Lo] 15.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 10.8
Radial Static Load (lbs.) 24,620
Radial Dynamic Load (lbs.) 10,886
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 125
Material 52100 Bearing Steel
RJG160CP0 16.0000 18.0000 Radial Contact Sealed

Bearing information

Learn more about RJG160CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG160CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG160CP0
Bore Diameter [b] 16.0000
Outside Diameter [D] 18.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 16.750
Land Diameter Outer Ring [Lo] 17.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 12.3
Radial Static Load (lbs.) 27,910
Radial Dynamic Load (lbs.) 11,648
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 110
Material 52100 Bearing Steel
RJG180CP0 18.0000 20.0000 Radial Contact Sealed

Bearing information

Learn more about RJG180CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG180CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG180CP0
Bore Diameter [b] 18.0000
Outside Diameter [D] 20.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 18.750
Land Diameter Outer Ring [Lo] 19.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 13.7
Radial Static Load (lbs.) 31,190
Radial Dynamic Load (lbs.) 12,367
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 100
Material 52100 Bearing Steel
RJG200CP0 20.0000 22.0000 Radial Contact Sealed

Bearing information

Learn more about RJG200CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your
application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Inch Series Bearings RJG200CP0 Specifications Specifications
Product Type Radial Contact Sealed
Part Number RJG200CP0
Bore Diameter [b] 20.0000
Outside Diameter [D] 22.0000
Width [W] 1.0000
Land Diameter Inner Ring [Li] 20.750
Land Diameter Outer Ring [Lo] 21.250
Housing Fillet [f1] 0.080
Ball Diameter 1/2
Weight (lbs.) 15.8
Radial Static Load (lbs.) 34,470
Radial Dynamic Load (lbs.) 13,044
Thrust Static Load (lbs.) N/A
Thrust Dynamic Load (lbs.) N/A
Moment Static Load (lbs. -in.) N/A
Moment Dynamic Load (lbs. -in.) N/A
Limiting Speed (RPM) 90
Material 52100 Bearing Steel
